Rock bolt is a convenient and irreplaceable supporting tool in surface engineering such as slope, deep foundation pit and underground cavity construction such as tunnel and stope. Speaking of bolt, the friction bolt produced by our company can be said to be a very famous product, which has been well received by countless customers in the market.

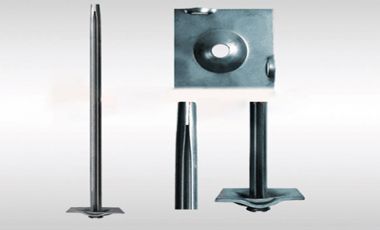

Tubular bolt is a new type of bolt with full-length anchorage and active reinforcement of surrounding rock, which can make the surrounding rock in three-dimensional stress state and achieve rock stability

Product features

1. High-strength alloy strip steel is used as raw material;

2. Easy installation without anchoring agent;

3. The friction between bolt and rock mass is large;

4 has high shear and tensile strength;

5 equipped with high-strength tray, the tray is stressed evenly;

Technical requirements

1. The surface of friction bolt shall be smooth without serious strain and corrosion. The weld shall be free of cracks, air holes and slag inclusion, and shall not burn through the pipe wall. The tray should be able to move freely on the rod body. 170o—190o should be staggered between the stop ring interface and the pipe joint opening.

2. Pull-off force of retaining ring weld is ?80kN, ultimate tensile force of rod body is ?110kN, initial anchoring force is ?25kN/m, and bearing capacity of pallet is ?65kN.

Product performance

1 Initial anchoring force: 3~7 tons;

2. Pull-off load of anchor pipe ring: 8~10 tons;

3. Tensile breaking resistance of rock bolt: 12~13 tons;

4 corrosion resistance is 20~30% higher than A3 steel, which is beneficial to long-term use.

Usage method

01 according to the design requirements, determine the anchor hole position and drill holes with drilling tools.

02 blow the rock powder in the hole with compressed air.

03 the rod body is equipped with anchor plate, and the rock bolt is driven into the hole with impact drill.

ZXsteelgroup specializes in the sales of steel rails, mining supporting materials, steel plate sales and steel plate cutting, and strictly controls the quality. After the products are put on the market, they are well received by customers. If you have any need, please feel free to ask for advice or leave us a message on the website. We believe that with your advice and help, we will do better.
