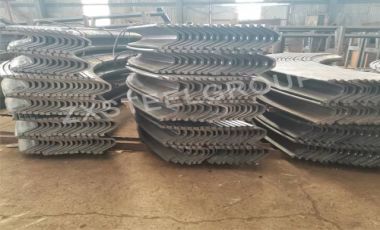

Installing a U steel arch is an important aspect of mine support. It provides a robust support structure that can withstand significant forces and stresses, keeping the mine tunnels safe and stable. In this article, we will discuss the steps involved in installing a U steel arch for mine support.

1.     Select the appropriate size and type of U steel arch: The size and type of U steel arch used for mine support depends on various factors, including the height and width of the tunnel, the weight of the overlying rock, and the expected loads on the support structure. Consult with a structural engineer to determine the appropriate size and type of arch for your specific mining conditions.

2.     Prepare the installation area: The installation area should be cleared of any debris or loose rock that could fall during the installation process. The area should also be leveled and free of any obstructions that could interfere with the installation.

3.     Install the initial anchor: The U steel arch is typically installed using a series of anchors that are drilled into the rock. The first anchor is critical because it sets the alignment and elevation of the arch. Use a drill to create a hole in the rock, then insert the anchor and tighten it to the appropriate torque.

4.     Install the U steel arch: The U steel arch is typically installed in sections. The sections are connected to each other using bolts or welding. Each section is aligned with the initial anchor and installed using a series of anchors drilled into the rock. The U steel arch should be installed in a continuous manner, ensuring that the arch is properly aligned and supported.

5.     Apply shotcrete: Once the U steel arch is installed, shotcrete is applied to the exposed rock surface. Shotcrete is a type of concrete that is applied using a high-pressure hose. It helps to stabilize the rock surface and provides additional support to the U steel arch.

6.     Install additional support elements: Depending on the conditions of the mine, additional support elements may be required. These can include rock bolts, mesh, or cable bolts. These elements are installed to provide additional support to the U steel arch and ensure the stability of the mine tunnels.

7.     Inspect and maintain: Once the U steel arch is installed, it should be inspected on a regular basis to ensure that it remains in good condition. Any damage or deterioration should be repaired promptly to prevent further damage to the support structure.
