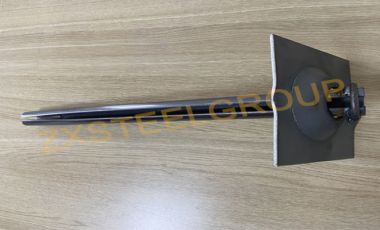

Split Set stabilizers, with a diameter of 39mm, are indispensable tools in the mining industry for providing ground support and ensuring the safety and stability of underground excavations. These robust, efficient, and easy-to-install devices play a crucial role in preventing collapses and maintaining the integrity of mine tunnels and shafts. In this article, we will explore the key features, installation process, and benefits of 39mm Split Set stabilizers in mine support.



Key Features of 39mm Split Set Stabilizers:



Diameter: The 39mm Split Set stabilizers are designed to fit into a 39mm hole, making them suitable for a range of underground applications, from small-scale mining operations to larger industrial mines.



Material: These stabilizers are typically constructed from high-strength steel, ensuring they can withstand the tremendous pressure and stress exerted on them in mining environments.



Unique Split Design: The name "Split Set" comes from the distinctive split-tube design. This allows for easy installation without the need for grout, resin, or mechanical expansion, making it a cost-effective and time-saving solution.



Ribbed Surface: The stabilizers feature a ribbed surface, which enhances their grip on the surrounding rock, reducing the chances of slippage and enhancing stability.



Flexible Lengths: Split Set stabilizers are available in various lengths, allowing for customization to the specific needs of a mine.



Installation Process:



The installation of 39mm Split Set stabilizers is a straightforward process that requires minimal equipment and expertise:



Drilling: A 39mm hole is drilled into the rock or tunnel wall to the required depth. This hole should be clean and free of obstructions.



Insertion: The Split Set stabilizer is inserted into the hole. Its unique split design allows it to grip the surrounding rock without the need for any additional anchoring materials.



Driving: A driver tool is used to impact the top of the stabilizer, forcing it to expand and exert pressure on the rock, creating a secure, frictional anchorage.



Trimming: If the stabilizer's length exceeds the required support depth, it can be trimmed to the desired size using a simple cutting tool.



Reinforcement: Additional stabilizers can be installed as needed, spaced along the tunnel or shaft to provide comprehensive support.



Benefits of 39mm Split Set Stabilizers:



Rapid Installation: The straightforward installation process of Split Set stabilizers reduces downtime and increases the efficiency of mine support activities.



Cost-Effective: These stabilizers are economical and require minimal equipment and labor, making them a cost-effective solution for ground support.



Versatility: Split Set stabilizers can be used in various mining applications, including tunnels, shafts, and stopes, making them a versatile option for mine operators.



Safety: By providing reliable ground support, these stabilizers contribute to a safer working environment for miners, reducing the risk of accidents related to ground instability.



Longevity: The high-strength steel construction ensures the long-term stability of underground excavations, reducing the need for frequent maintenance and re-support.



Minimal Environmental Impact: Unlike other support methods that may require grout or resin, Split Set stabilizers have a minimal environmental footprint, as they do not introduce chemicals into the underground environment.



In conclusion, 39mm Split Set stabilizers are an essential tool for mine support, offering a reliable, cost-effective, and easy-to-install solution for ground control in the mining industry. Their unique design, material strength, and versatility make them an indispensable choice for ensuring the safety and stability of underground excavations, ultimately contributing to the success and sustainability of mining operations.
