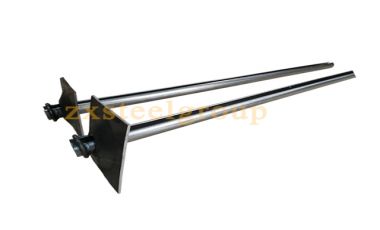

Split set stabilizers are vital tools used in mining to reinforce unstable rock formations and enhance safety within underground excavations. These stabilizers consist of a steel tube with longitudinal splits and a wedge-shaped anchor head, designed to provide immediate support in challenging ground conditions. Understanding their proper application is crucial for effective mine support. Here's a detailed guide on how to use split set stabilizers:



Preparation and Safety Measures

Assessment: Evaluate the geological conditions of the mine to identify areas prone to instability. Factors like rock type, stress distribution, and potential movement help determine where stabilizers are needed.



Safety Protocol: Before any installation, ensure all safety protocols are followed. Personal protective equipment (PPE) is mandatory, including helmets, gloves, safety glasses, and appropriate clothing.



Installation Process

Drilling Holes: Drill holes into the rock at the specified angle and depth using a rock drill or similar equipment. The diameter of the hole should be slightly larger than the stabilizer tube to allow easy insertion.



Cleaning the Hole: Remove any debris or loose material from the hole to ensure a proper fit for the stabilizer.



Inserting the Split Set Stabilizer: Insert the split set stabilizer into the hole. It's crucial to drive it in with a handheld driver or pneumatic tool with enough force to expand the tube and wedge it securely into the surrounding rock.



Anchoring: Once the stabilizer is in place, the split set anchor head is securely seated against the rock surface, providing immediate support against potential movement.



Trimming Excess: If necessary, trim the exposed end of the stabilizer to the desired length, ensuring it doesn’t interfere with mining activities or pose a safety hazard.



Factors to Consider

Stabilizer Length: Choose the appropriate length of the stabilizer based on the thickness of the rock strata and the depth of the unsupported ground.



Stress Distribution: Understand the stress patterns within the rock mass. Properly placed stabilizers help redistribute stress and prevent rock failures.



Monitoring and Maintenance: Regularly inspect stabilizers for signs of movement, corrosion, or damage. Replace any compromised stabilizers promptly to maintain safety.



Expert Consultation: In complex mining environments, consult with geotechnical engineers or experienced professionals to determine the best strategies for stabilizer placement and support.



Advantages of Split Set Stabilizers

Immediate Support: They offer instant support upon installation, reducing the risk of rock falls or collapses.



Adaptability: Effective in various geological conditions, including weak strata or high stress zones.



Cost-effectiveness: Compared to other support methods, split set stabilizers are relatively inexpensive and easy to install, reducing operational downtime.



In conclusion, the proper use of split set stabilizers is essential for maintaining a safe and stable environment in mining operations. Understanding geological conditions, following precise installation procedures, and regular maintenance are key aspects to ensure their effectiveness in supporting mine structures and safeguarding personnel.
