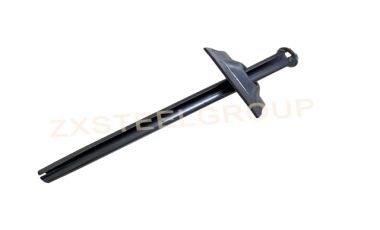

Using a 39mm split-set stabilizer for mine support involves a precise process to ensure the safety and stability of underground excavations. Split-set stabilizers are commonly utilized in mining operations to provide ground support in areas where there is potential for rock instability. Here's a detailed guide on how to use a 39mm split-set stabilizer effectively:

Assessment and Planning:

Before installing any ground support system, it's essential to conduct a thorough assessment of the rock conditions in the mine. This assessment helps determine the appropriate type and size of ground support required. Factors such as rock type, geological structures, stress conditions, and anticipated loads should be considered during this stage.

Selecting the Split-Set Stabilizer:

In this case, a 39mm split-set stabilizer has been chosen for ground support. The diameter of the stabilizer is crucial as it should match the size of the drilled hole in the rock. The length of the stabilizer is also important, ensuring sufficient anchorage into the surrounding rock mass.

Drilling Holes:

Once the assessment is complete and the stabilizers are selected, the next step is to drill holes into the rock. These holes should be of the appropriate diameter and depth to accommodate the stabilizers. The drilling process should follow safety protocols, and the hole locations should be accurately marked according to the mine plan.

Cleaning the Holes:

After drilling, it's important to clean the holes thoroughly to remove any debris or loose material. This ensures proper contact between the stabilizer and the rock surface, maximizing its effectiveness.

Inserting the Split-Set Stabilizers:

The split-set stabilizers are then inserted into the drilled holes. Care should be taken to ensure that the stabilizers are fully seated and centered within the holes. This may require the use of a mallet or mechanical inserter to drive the stabilizers into position.

Expansion of the Stabilizers:

Once inserted, the split-set stabilizers are expanded to create radial pressure against the surrounding rock mass. This pressure helps to secure the stabilizers in place and provides immediate support to the rock structure. Expansion can be achieved using a mechanical or hydraulic system, depending on the specific design of the stabilizers.

Verification of Support:

After installation, it's essential to verify the effectiveness of the ground support system. This may involve conducting rock stability assessments, monitoring ground movement, and inspecting the installed stabilizers for any signs of failure or displacement.

Monitoring and Maintenance:

Continuous monitoring of the ground support system is necessary to ensure its ongoing effectiveness. Regular inspections should be conducted to check for any signs of deterioration or damage to the stabilizers. Any issues identified during inspections should be addressed promptly through maintenance or replacement of the stabilizers as needed.

Documentation and Record Keeping:

Throughout the process, it's important to maintain detailed documentation of the ground support installation, including drilling logs, stabilizer specifications, installation procedures, and inspection reports. This information is valuable for future reference and helps to ensure compliance with safety regulations and industry standards.

By following these steps diligently, mining operations can effectively utilize 39mm split-set stabilizers for ground support, enhancing safety and stability in underground excavations.
