Resin anchor bolts are critical components in mine support systems, playing a vital role in ensuring the stability and safety of underground structures. These bolts utilize resin as the anchoring medium, providing a strong and reliable connection between the bolt and the surrounding rock. Below is a detailed exploration of resin anchor bolts used for mine support, encompassing their structure, functions, applications, and technical specifications.

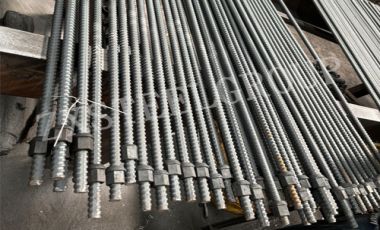

?Bolt Body?: Typically made of high-strength steel, the bolt body is the main load-bearing element. It is designed to withstand the tensile forces exerted on it.

?Resin Cartridge?: This is a tube filled with resin that, when mixed with a hardener, cures to form a strong bond with the rock. The resin cartridge is inserted into the drill hole before the bolt is installed.

?Mixing and Installation Tool?: This tool is used to mix the resin and hardener within the cartridge and to install the bolt into the hole.

?Nut and Washer?: Once the bolt is in place, a nut and washer are tightened onto the exposed end of the bolt to secure it and apply the desired pre-tension.

Functions

The primary function of resin anchor bolts in mine support is to reinforce the surrounding rock and prevent rock failures such as spalling, slabbing, and block falls. By providing a strong connection between the rock and the support structure, resin anchor bolts help to maintain the stability of the mine openings. Additionally, they can be used to secure other mining equipment and structures, such as roof bolters, conveyors, and ventilation ducts.



?Coal Mines?: In coal mines, resin anchor bolts are essential for supporting the roof and walls of the mine openings.

?Metal Mines?: They are also used in metal mines to support tunnels, stopes, and other underground structures.

?Tunneling and Underground Construction?: In addition to mining, resin anchor bolts are used in tunneling and other underground construction projects to reinforce the surrounding rock and ensure the stability of the excavation.

Technical Specifications

The technical specifications of resin anchor bolts can vary depending on the specific application and the requirements of the mine. However, some common specifications include:



?Bolt Diameter?: Typically ranges from 25mm to 50mm, depending on the load-bearing requirements.

?Bolt Length?: Can vary significantly, depending on the depth of the drill hole and the required anchorage length.

?Resin Type?: Various types of resin are available, including polyester, epoxy, and vinyl ester, each with its own cure time and strength properties.

?Pre-Tension?: The amount of force applied to the bolt during installation to ensure a tight fit and to pre-stress the rock.

Installation Process

The installation process for resin anchor bolts generally involves the following steps:



?Drilling the Hole?: A hole is drilled into the rock using a rotary drill bit. The depth and diameter of the hole are determined by the specifications of the bolt being installed.

?Cleaning the Hole?: The hole is cleaned of debris and moisture to ensure a good bond between the resin and the rock.

?Inserting the Resin Cartridge?: The resin cartridge is inserted into the hole.

?Installing the Bolt?: The bolt is then inserted into the hole and the mixing tool is used to mix the resin and hardener within the cartridge.

?Tightening the Nut and Washer?: Once the resin has cured, the nut and washer are tightened onto the bolt to secure it in place and apply the desired pre-tension.

Advantages

Resin anchor bolts offer several advantages over other types of mine support systems, including:



?High Strength?: They can withstand high tensile forces and provide a strong connection between the rock and the support structure.

?Quick Curing?: The resin cures quickly, allowing for rapid installation and reduced downtime.

?Versatility?: They can be used in a variety of rock types and mining conditions.

?Cost-Effective?: While the initial cost of resin anchor bolts may be higher than some other support systems, their long-term durability and reliability can lead to overall cost savings.

In conclusion, resin anchor bolts are an essential component of mine support systems, providing a strong and reliable connection between the rock and the support structure. Their use in various mining applications helps to ensure the stability and safety of underground structures. With their high strength, quick curing time, versatility, and cost-effectiveness, resin anchor bolts are a valuable tool in the mining industry.
